7004 ACE/P4AH1 SKF Angular Contact Ball Bearings
- SKF
7004 ACE/P4AH1
- Negotiation
- Negotiation
-
Wamei Industrial Manufacture Co.,Limited.2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |
| Name | 7004 ACE/P4AH1 | ML7004HVDUJ74S | HS7004-C-T-P4S |
| Brand | SKF | SNR | FAG |
| Gref | 1.1 cm3 | ||
| Calculation factor - e | 0.68 | ||
| Calculation factor - Y2 | 1.41 | ||
| Calculation factor - Y0 | 0.76 | ||
| Calculation factor - X2 | 0.67 | ||
| Calculation factor - Y1 | 0.92 | ||
| Preload class A - GA | 64 N | ||
| Preload class B - GB | 193 N | ||
| Preload class C - GC | 390 N | ||
| Calculation factor - f | 1.04 | ||
| Calculation factor - f1 | 0.99 | ||
| Calculation factor - f2A | 1 | ||
| Calculation factor - f2B | 1.03 | ||
| Calculation factor - f2C | 1.06 | ||
| Calculation factor - fHC | 1 | ||
| Preload class A | 52 N/micron | ||
| Preload class B | 78 N/micron | ||
| Preload class C | 102 N/micron | ||
| Size (mm) | 42x20x12(mm) | 20x42x24(mm) | 20x42x12(mm) |
| Bore Diameter (mm) | 42(mm) | 20(mm) | 20(mm) |
| Outer Diameter (mm) | 20(mm) | 42(mm) | 42(mm) |
| Width (mm) | 12(mm) | 24(mm) | 12(mm) |

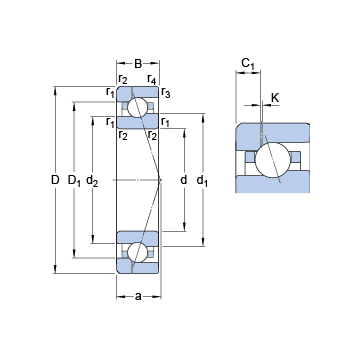

| d | 20 mm 0.7874 in | 20 mm 0.7874 in | 20 mm 0.7874 in |
| D | 42 mm 1.6535 in | 42 mm 1.6535 in | 42 mm 1.6535 in |
| B | 12 mm 0.4724 in | 24 mm 0.9449 in | 12 mm 0.4724 in |
| d1 | 26.6 mm 1.0472 in | ||
| d2 | 24.8 mm 0.9764 in | ||
| D1 | 34.21 mm 1.3469 in | ||
| K | 0.5 mm 0.0197 in | ||
| C1 | 3.67 mm 0.1445 in | ||
| r1,2 - min. | 0.6 mm 0.0236 in | ||
| r3,4 - min. | 0.3 mm 0.0118 in | ||
| a | 13.2 mm 0.5197 in | 10 mm 0.3937 in | |
| da - min. | 22 mm 0.8661 in | ||
| db - min. | 22 mm 0.8661 in | ||
| Da - max. | 40 mm 1.5748 in | ||
| Db - max. | 39.6 mm 1.5591 in | ||
| ra - max. | 0.6 mm 0.0236 in | ||
| rb - max. | 0.3 mm 0.0118 in | ||
| dn | 28.1 mm 1.1063 in | ||
| Basic dynamic load rating - C | 7.2 kN | ||
| Basic static load rating - C0 | 3.2 kN | ||
| Fatigue load limit - Pu | 0.137 kN | ||
| Limiting speed for grease lubrication | 48000 r/min | ||
| Limiting speed for oil lubrication | 75000 mm/min | ||
| Ball - Dw | 6.35 mm 0.25 in | ||
| Ball - z | 12 | ||
| d1 | 26.6 mm 1.0472 in | ||
| d2 | 24.8 mm 0.9764 in | ||
| D1 | 34.21 mm 1.3469 in | ||
| C1 | 3.67 mm 0.1445 in | ||
| r1,2 min. | 0.6 mm 0.0236 in | ||
| r3,4 min. | 0.3 mm 0.0118 in | ||
| da min. | 22 mm 0.8661 in | ||
| db min. | 22 mm 0.8661 in | ||
| Da max. | 40 mm 1.5748 in | ||
| Db max. | 39.6 mm 1.5591 in | ||
| ra max. | 0.6 mm 0.0236 in | ||
| rb max. | 0.3 mm 0.0118 in | ||
| dn | 28.1 mm 1.1063 in | ||
| Basic dynamic load rating C | 7.15 kN | ||
| Basic static load rating C0 | 3.25 kN | ||
| Fatigue load limit Pu | 0.137 kN | ||
| Attainable speed for grease lubrication | 48000 r/min | ||
| Attainable speed for oil-air lubrication | 75000 r/min | ||
| Ball diameter Dw | 6.35 mm 0.25 in | ||
| Number of balls z | 12 | ||
| Reference grease quantity Gref | 1.1 cm³ | ||
| Preload class A GA | 64 N | ||
| Static axial stiffness, preload class A | 52 N/µm | ||
| Preload class B GB | 193 N | ||
| Static axial stiffness, preload class B | 78 N/µm | ||
| Preload class C GC | 390 N | ||
| Static axial stiffness, preload class C | 102 N/µm | ||
| Calculation factor f | 1.04 | ||
| Calculation factor f1 | 0.99 | ||
| Calculation factor f2A | 1 | ||
| Calculation factor f2B | 1.03 | ||
| Calculation factor f2C | 1.06 | ||
| Calculation factor fHC | 1 | ||
| Calculation factor e | 0.68 | ||
| Calculation factor (single, tandem) Y2 | 0.87 | ||
| Calculation factor (single, tandem) Y0 | 0.38 | ||
| Calculation factor (single, tandem) X2 | 0.41 | ||
| Calculation factor (back-to-back, face-to-face) Y1 | 0.92 | ||
| Calculation factor (back-to-back, face-to-face) Y2 | 1.41 | ||
| Calculation factor (back-to-back, face-to-face) Y0 | 0.76 | ||
| Calculation factor (back-to-back, face-to-face) X2 | 0.67 | ||
| Mass bearing | 0.064 kg |
