Product Description
Name | 22309 EK | 22309 EK/VA759 | 22309 EK + AH 2309 |
Brand | SKF | SKF | SKF |
da - min. | 52.2 mm 2.0551 in | ||
d2 ≈ | 57.6 mm 2.2677 in | 57.6 mm 2.2677 in | |
D1 ≈ | 83.4 mm 3.2835 in | 83.4 mm 3.2835 in | |
r1,2 min. | 1.5 mm 0.0591 in | 1.5 mm 0.0591 in | |
Da max. | 91 mm 3.5827 in | 91 mm 3.5827 in | |
ra max. | 1.5 mm 0.0591 in | 1.5 mm 0.0591 in | |
Basic dynamic load rating C | 190 kN | 190 kN | |
Basic static load rating C0 | 183 kN | 183 kN | |
Fatigue load limit Pu | 19.6 kN | 19.6 kN | |
Calculation factor e | 0.37 | 0.37 | |
Calculation factor Y1 | 1.8 | 1.8 | |
Calculation factor Y2 | 2.7 | 2.7 | |
Calculation factor Y0 | 1.8 | 1.8 | |
Mass bearing | 1.35 kg | ||
Recommended lock nut tightening angle α | 130 ° | ||
Size (mm) | 100x45x36(mm) | ||
Bore Diameter (mm) | 100(mm) | ||
Outer Diameter (mm) | 45(mm) | ||
Width (mm) | 36(mm) | ||

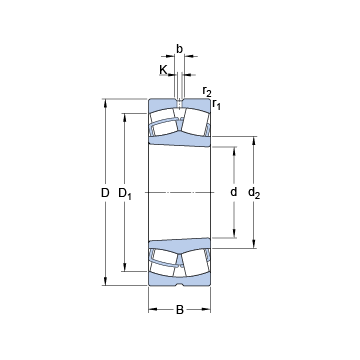

d | 45 mm 1.7717 in | ||
D | 100 mm 3.937 in | 100 mm 3.937 in | |
B | 36 mm 1.4173 in | 36 mm 1.4173 in | |
d2 | 57.6 mm 2.2677 in | ||
D1 | 83.4 mm 3.2835 in | ||
b | 6 mm 0.2362 in | 6 mm 0.2362 in | |
K | 3 mm 0.1181 in | 3 mm 0.1181 in | |
r1,2 - min. | 1.5 mm 0.0591 in | ||
da - max. | 57 mm 2.2441 in | ||
Da - max. | 91 mm 3.5827 in | ||
ra - max. | 1.5 mm 0.0591 in | ||
Basic dynamic load rating - C | 190 kN | ||
Basic static load rating - C0 | 176 kN | ||
Fatigue load limit - Pu | 19 kN | ||
Reference speed | 5300 r/min | 5300 r/min | |
Limiting speed | 7000 r/min | 7000 r/min | |
Calculation factor - e | 0.37 | ||
Calculation factor - Y1 | 1.8 | ||
Calculation factor - Y2 | 2.7 | ||
Calculation factor - Y0 | 1.8 | ||
Category | Spherical Roller Bearings | Spherical Roller Bearings | |
BDI Inventory | 0.0 | 0.0 | |
Manufacturer Name | SKF | SKF | |
Minimum Buy Quantity | N/A | N/A | |
Weight / Kilogram | 1.388 | 1.392 | |
EAN | 7316571580760 | 7316571727141 | |
Product Group - BDI | B04311 | B04311 | |
Internal Clearance | C0-Medium | C0-Medium | |
Mounting Method | Adapter Mount | Adapter Mount | |
Rolling Element | Spherical Roller Bearing | Spherical Roller Bearing | |
Bore Profile | Tapered | Tapered | |
Cage Material | Steel | Steel | |
Enclosure | Open | Open | |
Number of Rows of Rollers | Double Row | Double Row | |
Relubricatable | Yes | Yes | |
Withdrawal Sleeve | AH2309 (Specify bore) | AH2309 (Specify bore) | |
Withdrawal Nut | KM10 | KM10 | |
Inch - Metric | Metric | Metric | |
Long Description | 45MM Tapered Bore; 100MM Outside Diameter; 36MM Width; C0-Medium Clearance; Adapter Mount; Double Row of Spherical Roller Bearings; Steel Cage Material; Open Enclosure; Relubricatable; Adapter Part Number - H2309 (Specify bore) | 45MM Tapered Bore; 100MM Outside Diameter; 36MM Width; C0-Medium Clearance; Adapter Mount; Double Row of Spherical Roller Bearings; Steel Cage Material; Open Enclosure; Relubricatable; Adapter Part Number - H2309 (Specify bore) | |
Other Features | Order adapter or withdrawal sleeve or nut separately. Others may be available | Order adapter or withdrawal sleeve or nut separately. Others may be available | |
Category - BDI | Spherical Roller Bearing | Spherical Roller Bearing | |
UNSPSC | 31171510 | 31171510 | |
Harmonized Tariff Code | 84823080 | 84823080 | |
Noun | Bearing | Bearing | |
Keyword String | Spherical | Spherical | |
Manufacturer URL | http://www.skf.com | http://www.skf.com | |
Weight / LBS | 3.059 | 3.067 | |
Adapter Part Number | SNW109 H2309 HA2309 HE2309 (Specify bore) Inch | H2309 (Specify bore) Millimeter | SNW109 H2309 HA2309 HE2309 (Specify bore) Inch | H2309 (Specify bore) Millimeter | |
Bore | 1.772 Inch | 45 Millimeter | 1.772 Inch | 45 Millimeter | |
Outside Diameter | 3.937 Inch | 100 Millimeter | 3.937 Inch | 100 Millimeter | |
Width | 1.417 Inch | 36 Millimeter | 1.417 Inch | 36 Millimeter | |
bore diameter: | 45 mm 1.7717 in | 45 mm 1.7717 in | |
maximum rpm: | 7000 RPM | 7000 RPM | |
outside diameter: | 100 mm 3.937 in | 100 mm 3.937 in | |
operating temperature range: | Maximum of +390 °F | Maximum of +390 °F | |
overall width: | 36 mm 1.4173 in | 36 mm 1.4173 in | |
cage material: | Steel | Steel | |
bore type: | Tapered 1:12 | Tapered 1:12 | |
bearing material: | Steel | Steel | |
outer ring type: | Not Split | Not Split | |
cage type: | Inner Ring Guided | Inner Ring Guided | |
internal clearance: | C0 | C0 | |
precision rating: | Not Rated | Not Rated | |
closure type: | Open | Open | |
finish/coating: | Uncoated | Uncoated | |
lubrication hole type: | Lubrication Groove & Hole | Lubrication Groove & Hole | |
outer ring width: | 36 mm 1.4173 in | 36 mm 1.4173 in | |
dynamic load capacity: | 183 kN | 183 kN | |
fillet radius: | 1.5 mm 0.0591 in | 1.5 mm 0.0591 in | |
static load capacity: | 183 kN | 183 kN | |
series: | 223 | 223 |
