Product Description
Name | 6806LLU | 6806LLUN | 6806LLUNR |
Brand | NTN | NTN | NTN |
Category | Single Row Ball Bearings | ||
BDI Inventory | 0.0 | ||
Manufacturer Name | NTN | ||
Minimum Buy Quantity | N/A | ||
Weight / Kilogram | 0.023 | ||
EAN | 4547359585407 | ||
Product Group - BDI | B00308 | ||
Enclosure | 2 Seals | ||
Precision Class | ABEC 1 | ISO P0 | ||
Maximum Capacity / Filling Slot | No | ||
Rolling Element | Ball Bearing | ||
Snap Ring | No | ||
Internal Special Features | No | ||
Cage Material | Steel | ||
Enclosure Type | Contact Seal | ||
Internal Clearance | C0-Medium | ||
Inch - Metric | Metric | ||
Long Description | 30MM Bore; 42MM Outside Diameter; 7MM Outer Race Diameter; 2 Seals; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features | ||
Category - BDI | Single Row Ball Bearing | ||
UNSPSC | 31171504 | ||
Harmonized Tariff Code | 8482.10.50.68 | ||
Noun | Bearing | ||
Keyword String | Ball | ||
Manufacturer URL | http://www.ntnamerica.com | ||
Manufacturer Item Number | 6806LLU/5K | ||
Weight / LBS | 0.052 | ||
Outer Race Width | 0.276 Inch | 7 Millimeter | ||
Outside Diameter | 1.654 Inch | 42 Millimeter | ||
Bore | 1.181 Inch | 30 Millimeter | ||
bore diameter: | 30 mm 1.1811 in | ||
static load capacity: | 3650 N | ||
outside diameter: | 42 mm 1.6535 in | ||
precision rating: | ISO Class 0 | ||
overall width: | 7 mm 0.2756 in | ||
finish/coating: | Uncoated | ||
bore type: | Round | ||
bearing material: | High Carbon Chrome Steel | ||
closure type: | Double Sealed | ||
cage material: | Steel | ||
row type & fill slot: | Single Row Non-Fill Slot | ||
inner ring width: | 7 mm 0.2756 in | ||
snap ring included: | Without Snap Ring | ||
outer ring width: | 7 mm 0.2756 in | ||
internal clearance: | CN | ||
maximum rpm (grease): | 8800 rpm | ||
operating temperature range: | -40 to 120 ºC | ||
fillet radius: | 0.3 mm 0.0118 in | ||
dynamic load capacity: | 4700 N | ||
manufacturer product page: | Click here | ||
Size (mm) | 30x42x7(mm) | 30x42x7(mm) | 30x42x7(mm) |
Bore Diameter (mm) | 30(mm) | 30,000(mm) | 30,000(mm) |
Outer Diameter (mm) | 42(mm) | 42,000(mm) | 42,000(mm) |
Width (mm) | 7(mm) | 7,000(mm) | 7,000(mm) |

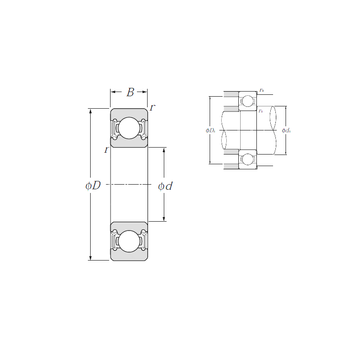

d | 30 mm 1.1811 in | 30,000 mm 1.1811 in | 30,000 mm 1.1811 in |
D | 42 mm 1.6535 in | 42,000 mm 1.6535 in | 42,000 mm 1.6535 in |
B | 7 mm 0.2756 in | 7,000 mm 0.2756 in | 7,000 mm 0.2756 in |
C | 7 mm 0.2756 in | 7,000 mm 0.2756 in | 7,000 mm 0.2756 in |
r min. | 0,3 mm 0.0118 in | ||
da min. | 32 mm 1.2598 in | ||
da max | 33 mm 1.2992 in | ||
Da max. | 40 mm 1.5748 in | ||
ra max. | 0,3 mm 0.0118 in | ||
Weight | 0,026 Kg | ||
Basic dynamic load rating (C) | 4,7 kN | ||
Basic static load rating (C0) | 3,65 kN | ||
Reference speed | 8,8 r/min |
