Product Description
 |  |  | |
| Name | 62/28LLU | 62/28LLUNR/2A | 62/28LLU/5K |
| Brand | NTN | NTN | NTN |
| Size (mm) | 28x58x16(mm) | ||
| Bore Diameter (mm) | 28(mm) | ||
| Outer Diameter (mm) | 58(mm) | ||
| Width (mm) | 16(mm) | ||

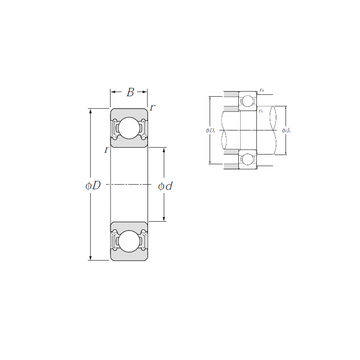

| d | 28 mm 1.1024 in | 28 mm 1.1024 in | 28 mm 1.1024 in |
| D | 58 mm 2.2835 in | 58 mm 2.2835 in | 58 mm 2.2835 in |
| B | 16 mm 0.6299 in | 16 mm 0.6299 in | 16 mm 0.6299 in |
| C | 16 mm 0.6299 in | ||
| r min. | 1 mm 0.0394 in | ||
| da min. | 33 mm 1.2992 in | ||
| da max | 35,5 mm 1.3976 in | 35.5 mm 1.3976 in | 35.5 mm 1.3976 in |
| Da max. | 53 mm 2.0866 in | ||
| ra max. | 1 mm 0.0394 in | ||
| Weight | 0,171 Kg | ||
| Basic dynamic load rating (C) | 17,9 kN | ||
| Basic static load rating (C0) | 9,75 kN | ||
| Reference speed | 8 100 r/min | ||
| Category | Single Row Ball Bearings | ||
| BDI Inventory | 0.0 | ||
| Manufacturer Name | NTN | ||
| Minimum Buy Quantity | N/A | ||
| Weight / Kilogram | 0 | ||
| EAN | 4547359553765 | ||
| Product Group - BDI | B00308 | ||
| Enclosure | 2 Seals | ||
| Precision Class | ABEC 1 | ISO P0 | ||
| Maximum Capacity / Filling Slot | No | ||
| Rolling Element | Ball Bearing | ||
| Snap Ring | No | ||
| Internal Special Features | No | ||
| Cage Material | Steel | ||
| Enclosure Type | Contact Seal | ||
| Internal Clearance | C0-Medium | ||
| Inch - Metric | Metric | ||
| Long Description | 28MM Bore; 58MM Outside Diameter; 16MM Outer Race Width; 2 Seals; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features; C0-Medium Internal Clearance; Steel Cage; Contact Seal Enclosure | ||
| Other Features | Deep Groove | Double Lip Friction Nitrile Rubber Seal | -20 To 120 Deg C | Shell Alvania Prelubricated | ||
| Category - BDI | Single Row Ball Bearing | ||
| UNSPSC | 31171504 | ||
| Harmonized Tariff Code | 8482.10.50.68 | ||
| Noun | Bearing | ||
| Keyword String | Ball | ||
| Manufacturer URL | http://www.ntnamerica.com | ||
| Weight / LBS | 0.377 | ||
| Outer Race Width | 0.63 Inch | 16 Millimeter | ||
| Outside Diameter | 2.283 Inch | 58 Millimeter | ||
| Inner Race Width | 0 Inch | 0 Millimeter | ||
| Bore | 1.102 Inch | 28 Millimeter | ||
| bore diameter: | 28 mm 1.1024 in | ||
| precision rating: | ISO Class 0 | ||
| outside diameter: | 58 mm 2.2835 in | ||
| finish/coating: | Uncoated | ||
| overall width: | 16 mm 0.6299 in | ||
| bearing material: | High Carbon Chrome Steel | ||
| bore type: | Round | ||
| cage material: | Steel | ||
| closure type: | Double Sealed | ||
| inner ring width: | 16 mm 0.6299 in | ||
| row type & fill slot: | Single Row Non-Fill Slot | ||
| outer ring width: | 16 mm 0.6299 in | ||
| snap ring included: | Without Snap Ring | ||
| maximum rpm (grease): | 8100 rpm | ||
| internal clearance: | CN | ||
| fillet radius: | 1 mm 0.0394 in | ||
| operating temperature range: | -40 to 120 ºC | ||
| maximum rpm: | 14000 RPM | ||
| dynamic load capacity: | 17900 N | ||
| series: | 62 | ||
| static load capacity: | 9750 N | ||
| manufacturer product page: | Click here |
