Home>Products>Self Aligning Ball Bearings>1319S NTN Self Aligning Ball Bearings
English
-
Wamei Industrial Manufacture Co.,Limited.2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |

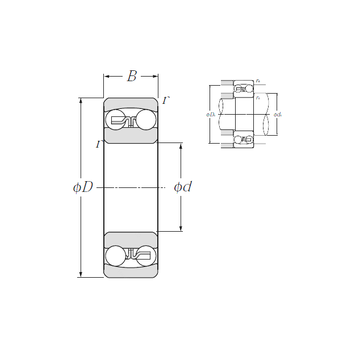

| Name | 1319S | 1319SK | 1319 |
| Brand | NTN | NTN | ISB |
| Size (mm) | 95x200x45(mm) | 95x200x45(mm) | 95x200x45(mm) |
| Bore Diameter (mm) | 95(mm) | 95(mm) | 95(mm) |
| Outer Diameter (mm) | 200(mm) | 200(mm) | 200(mm) |
| Width (mm) | 45(mm) | 45(mm) | 45(mm) |
| d | 95 mm 3.7402 in | 95 mm 3.7402 in | 95 mm 3.7402 in |
| D | 200 mm 7.874 in | 200 mm 7.874 in | 200 mm 7.874 in |
| B | 45 mm 1.7717 in | 45 mm 1.7717 in | 45 mm 1.7717 in |
| C | 45 mm 1.7717 in | 45 mm 1.7717 in | 45 mm 1.7717 in |
| r min. | 3 mm 0.1181 in | 3 mm 0.1181 in | |
| da min. | 108 mm 4.252 in | 108 mm 4.252 in | |
| Da max. | 187 mm 7.3622 in | 187 mm 7.3622 in | |
| ra max. | 2,5 mm 0.0984 in | 2,5 mm 0.0984 in | |
| Weight | 6,84 Kg | 6,84 Kg | 6,7 Kg |
| Basic dynamic load rating (C) | 129 kN | 129 kN | 130,34 kN |
| Basic static load rating (C0) | 51 kN | 51 kN | 49,98 kN |
| (Grease) Lubrication Speed | 3 000 r/min | 3 000 r/min | 3289,5 r/min |
| (Oil) Lubrication Speed | 3 600 r/min | 3 600 r/min | |
| Calculation factor (e) | 0,23 | 0,23 | |
| Calculation factor (Y0) | 2,9 | 2,9 | |
| Calculation factor (Y1) | 2,8 | 2,8 | |
| B1 | 49 mm 1.9291 in | 49 mm 1.9291 in | |
| rs min | 3 mm 0.1181 in | 3 mm 0.1181 in | |
| e | 0.23 | 0.23 | |
| Y1 | 2.8 | 2.8 | |
| Y2 | 4.3 | 4.3 | |
| Y0 | 2.9 | 2.9 | |
| Radial clearance class | CN | CN | |
| Precision class | P0 | P0 | |
| Mass | 6.84 kg | 6.84 kg | |
| Dynamic load, C | 129 kN | 129 kN | |
| Static load, C0 | 51 kN | 51 kN | |
| Nlim (oil) | 3,600 rpm | 3,600 rpm | |
| Nlim (grease) | 3,000 rpm | 3,000 rpm | |
| Min operating temperature, Tmin | -20 °C | -20 °C | |
| Max operating temperature, Tmax | 120 °C | 120 °C | |
| da min | 108 mm 4.252 in | 108 mm 4.252 in | |
| Da max | 187 mm 7.3622 in | 187 mm 7.3622 in | |
| ra max | 2.5 mm 0.0984 in | 2.5 mm 0.0984 in |
Wamei Industrial Manufacture Co.,Limited is your best, safest & quickest partner to buy Hydraulic components. You just send us the part number or you tell us the brand and sepcification you are looking for, we'll make the quotation for you asap.
