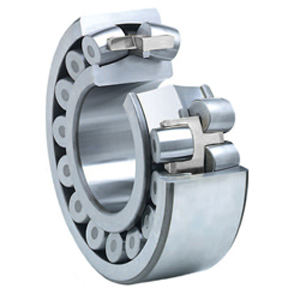

22224EAE4 NSK Spherical Roller Bearings

  • NSK
  • 22224EAE4

  • Negotiation
  • Negotiation
Contact NowChat Now
Wamei Industrial Manufacture Co.,Limited.

Wamei Industrial Manufacture Co.,Limited.China

  • Wamei Industrial Manufacture Co.,Limited.2020-07-10 09:46:19
    Welcome to my shop! Glad to serve you! Please send your question!
Price Inspection Certificate Product Specifications Company Profile

Product Description

Name22224EAE422224EAE4C422224EAE4C3
BrandNSKNSKNSK
Size (mm)120x215x58(mm)
Bore Diameter (mm)120(mm)
Outer Diameter (mm)215(mm)
Width (mm)58(mm)

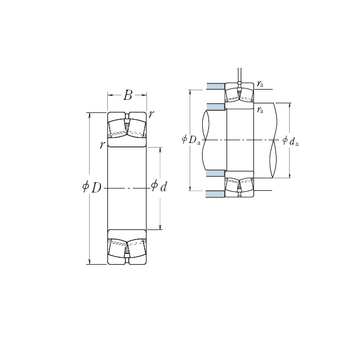

d120 mm
4.7244 in
D215 mm
8.4646 in
B58 mm
2.2835 in
C58 mm
2.2835 in
r min.2,1 mm
0.0827 in
da min.132 mm
5.1969 in
da max142 mm
5.5906 in
Da min190 mm
7.4803 in
Da max.203 mm
7.9921 in
ra max.2 mm
0.0787 in
Weight8,8 Kg
Basic dynamic load rating (C)550 kN
Basic static load rating (C0)765 kN
(Grease) Lubrication Speed2000 r/min
(Oil) Lubrication Speed2600 r/min
Calculation factor (e)0,25
Calculation factor (Y0)2,6
Calculation factor (Y2)3,9
CategorySpherical Roller BearingsBearingsSpherical Roller Bearings
BDI Inventory0.00.00.0
Manufacturer NameNSKNSKNSK
Minimum Buy QuantityN/AN/AN/A
Weight / Kilogram8.958.95
EAN002917641154000291766445730029176411557
Product Group - BDIB04311B04311B04311
Internal ClearanceC0-MediumC3-Loose
Mounting MethodShaft MountShaft Mount
Rolling ElementSpherical Roller BearingSpherical Roller Bearing
Bore ProfileStraightStraight
Cage MaterialSteelSteel
EnclosureOpenOpen
Number of Rows of RollersDouble RowDouble Row
RelubricatableYesYes
Withdrawal SleeveNot ApplicableNot Applicable
Inch - MetricMetricMetric
Long Description120MM Straight Bore; 215MM Outside Diameter; 58MM Width; C0-Medium Clearance; Shaft Mount; Double Row of Spherical Roller Bearings; Steel Cage Material; Open Enclosure; Relubricatable120MM Straight Bore; 215MM Outside Diameter; 58MM Width; C3-Loose Clearance; Shaft Mount; Double Row of Spherical Roller Bearings; Steel Cage Material; Open Enclosure; Relubricatable
Category - BDISpherical Roller BearingSpherical Roller Bearing
UNSPSC3117151031171510
Harmonized Tariff Code8482308084823080
NounBearingBearing
Keyword StringSphericalSpherical
Manufacturer URLhttp://www.nskamericas.comhttp://www.nskamericas.com
Manufacturer Item Number22224EAE422224EAE4C3
Weight / LBS8.950
Width2.283 Inch | 58 Millimeter2.283 Inch | 58 Millimeter
Bore4.724 Inch | 120 Millimeter4.724 Inch | 120 Millimeter
Adapter Part NumberNot Applicable Inch | Not Applicable MillimeterNot Applicable Inch | Not Applicable Millimeter
Outside Diameter8.465 Inch | 215 Millimeter8.465 Inch | 215 Millimeter
bore diameter:120 mm
4.7244 in
120 mm
4.7244 in
maximum rpm:3000 RPM3000 RPM
outside diameter:215 mm
8.4646 in
215 mm
8.4646 in
operating temperature range:Maximum of +200 °CMaximum of +200 °C
overall width:58 mm
2.2835 in
58 mm
2.2835 in
cage material:SteelSteel
bore type:StraightStraight
bearing material:SteelSteel
outer ring type:Not SplitNot Split
cage type:Roller GuidedRoller Guided
internal clearance:C0C3
precision rating:RBEC 1 (ISO Class Normal)RBEC 1 (ISO Class Normal)
closure type:OpenOpen
finish/coating:UncoatedUncoated
lubrication hole type:Lubrication Groove & HoleLubrication Groove & Hole
outer ring width:58 mm
2.2835 in
58 mm
2.2835 in
dynamic load capacity:685000 N685000 N
fillet radius:2.1 mm
0.0827 in
2.1 mm
0.0827 in
static load capacity:765000 N765000 N
series:222222
Y32.7
hidYobi22224EAE4
LangID1
Y12.7
D_215
Y23.9
Macha rpm3000
B_58
CADhttps://service.web2cad.co.jp/pcom/maker_login.php?Maker=NSK_RB&language=ja&info=nsk_rb/roller_bearings/spherical_rb/cylindrical_bore_asmtab.prj&varset={STAN=HPS},{ORDER=22224EAE4},{SD=120},{D=215},{B=58.0},{R=2.1},{CR1=685000},{COR1=765000},{LT=3200},{LM=3000},{LG=2400},{LO=3000},{DA1=132},{DA2=142.000},{DA3=203},{DA4=190},{RA=2.0},{E=0.25},{Y2=3.9},{Y3=2.7},{Y0=2.6},{MASS=8.80}
da min132
hidTableecat_NSSPHR
Oil rpm3000
Y02.6
mass8.8
GRS rpm2400
ra2
TSR rpm3200
C0765
DE_195.208
X01
Prod_Type3SRB_CTB_CB
X11
X20.67
SIR23.5
e0.25
DA_25.38
bomp22224EAE4
Z_19
ALP238
ALP19
ALP30
D_a max203
D_a min190
yobi22224EAE4
HPSHPS
ALPHA_0.168
SDM_170.186
r2.1
KBRG2328
SBRG22
DI_145.164
calcUrl/BearingGuide/html/calculation.jsp
