7307BDT NACHI Angular Contact Ball Bearings
- NACHI
7307BDT
- Negotiation
- Negotiation
-
Wamei Industrial Manufacture Co.,Limited.2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  | | |

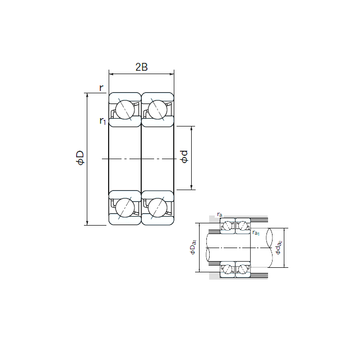

| Name | 7307BDT | 7307BDT | 7307BDT |
| Brand | NTN | NACHI | CYSD |
| Size (mm) | 35x80x21(mm) | 35x80x21(mm) | 35x80x21(mm) |
| Bore Diameter (mm) | 35(mm) | 35(mm) | 35(mm) |
| Outer Diameter (mm) | 80(mm) | 80(mm) | 80(mm) |
| Width (mm) | 21(mm) | 21(mm) | 21(mm) |
| d | 35 mm 1.378 in | 35 mm 1.378 in | 35 mm 1.378 in |
| D | 80 mm 3.1496 in | 80 mm 3.1496 in | 80 mm 3.1496 in |
| B | 21 mm 0.8268 in | 21 mm 0.8268 in | 21 mm 0.8268 in |
| ra1 max. | 1 mm 0.0394 in | ||
| Angle (α) | 40 ° | 40 ° | 40 ° |
| a | 34,5 mm 1.3583 in | 13.7 mm 0.5394 in | |
| r min. | 1,5 mm 0.0591 in | 1.5 mm 0.0591 in | 1,5 mm 0.0591 in |
| r1 min. | 1 mm 0.0394 in | 1 mm 0.0394 in | |
| 2B | 42 mm 1.6535 in | 42 mm 1.6535 in | 42 mm 1.6535 in |
| da min. | 43,5 mm 1.7126 in | 40 mm 1.5748 in | |
| Da max. | 71,5 mm 2.815 in | 74.6 mm 2.937 in | |
| db min | 40,5 mm 1.5945 in | ||
| ra max. | 1,5 mm 0.0591 in | 1 mm 0.0394 in | |
| Db max | 74,5 mm 2.9331 in | ||
| Weight | 0,938 Kg | 0.475 Kg | 0,938 Kg |
| Basic dynamic load rating (C) | 59,5 kN | 61,5 kN | 59,5 kN |
| Basic static load rating (C0) | 48,5 kN | 49,5 kN | 48,5 kN |
| (Grease) Lubrication Speed | 6 800 r/min | 5500 r/min | 6800 r/min |
Wamei Industrial Manufacture Co.,Limited is your best, safest & quickest partner to buy Hydraulic components. You just send us the part number or you tell us the brand and sepcification you are looking for, we'll make the quotation for you asap.
