Product Description
 |  |  | |
| Name | 6812ZZ | 6812ZZ | 6812ZZ |
| Brand | NTN | FBJ | KOYO |
| Size (mm) | 60x78x10(mm) | 60x78x10(mm) | 60x78x10(mm) |
| Bore Diameter (mm) | 60(mm) | 60(mm) | 60(mm) |
| Outer Diameter (mm) | 78(mm) | 78(mm) | 78(mm) |
| Width (mm) | 10(mm) | 10(mm) | 10(mm) |

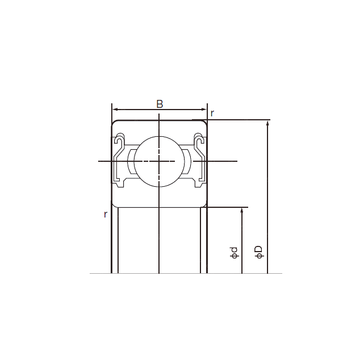

| d | 60 mm 2.3622 in | 60 mm 2.3622 in | 60 mm 2.3622 in |
| D | 78 mm 3.0709 in | 78 mm 3.0709 in | 78 mm 3.0709 in |
| B | 10 mm 0.3937 in | 10 mm 0.3937 in | 10 mm 0.3937 in |
| C | 10 mm 0.3937 in | 10 mm 0.3937 in | 10 mm 0.3937 in |
| rn | 0,3 mm 0.0118 in | ||
| r min. | 0,3 mm 0.0118 in | 0,3 mm 0.0118 in | |
| da min. | 62 mm 2.4409 in | 62 mm 2.4409 in | |
| da max | 64,5 mm 2.5394 in | 63 mm 2.4803 in | |
| Da max. | 76 mm 2.9921 in | 76 mm 2.9921 in | |
| ra max. | 0,3 mm 0.0118 in | 0,3 mm 0.0118 in | |
| Weight | 0,106 Kg | 0,11 Kg | 0,104 Kg |
| Basic dynamic load rating (C) | 11,5 kN | 8,71 kN | 11,5 kN |
| Basic static load rating (C0) | 10,6 kN | 6,7 kN | 10,6 kN |
| (Grease) Lubrication Speed | 8 000 r/min | 8000 r/min | |
| Category | Single Row Ball Bearings | ||
| BDI Inventory | 0.0 | ||
| Manufacturer Name | NTN | ||
| Minimum Buy Quantity | N/A | ||
| Weight / Kilogram | 0 | ||
| EAN | 4547359006308 | ||
| Product Group - BDI | B00308 | ||
| Enclosure | 2 Metal Shields | ||
| Precision Class | ABEC 1 | ISO P0 | ||
| Maximum Capacity / Filling Slot | No | ||
| Rolling Element | Ball Bearing | ||
| Snap Ring | No | ||
| Internal Special Features | No | ||
| Cage Material | Steel | ||
| Internal Clearance | C0-Medium | ||
| Inch - Metric | Metric | ||
| Long Description | 60MM Bore; 78MM Outside Diameter; 10MM Outer Race Width; 2 Metal Shields; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features; C0-Medium Internal Clearance; Steel Cage | ||
| Other Features | Deep Groove | Shell Alvania Prelubricated | ||
| Category - BDI | Single Row Ball Bearing | ||
| UNSPSC | 31171504 | ||
| Harmonized Tariff Code | 8482.10.50.68 | ||
| Noun | Bearing | ||
| Keyword String | Ball | ||
| Manufacturer URL | http://www.ntnamerica.com | ||
| Weight / LBS | 0.225 | ||
| Outside Diameter | 3.071 Inch | 78 Millimeter | ||
| Outer Race Width | 0.394 Inch | 10 Millimeter | ||
| Bore | 2.362 Inch | 60 Millimeter | ||
| Inner Race Width | 0 Inch | 0 Millimeter | ||
| bore diameter: | 60 mm 2.3622 in | ||
| precision rating: | ISO Class 0 | ||
| outside diameter: | 78 mm 3.0709 in | ||
| finish/coating: | Uncoated | ||
| overall width: | 10 mm 0.3937 in | ||
| bearing material: | High Carbon Chrome Steel | ||
| bore type: | Round | ||
| cage material: | Steel | ||
| closure type: | Double Shielded | ||
| inner ring width: | 10 mm 0.3937 in | ||
| row type & fill slot: | Single Row Non-Fill Slot | ||
| outer ring width: | 10 mm 0.3937 in | ||
| snap ring included: | Without Snap Ring | ||
| maximum rpm (grease): | 8000 rpm | ||
| internal clearance: | CN | ||
| fillet radius: | 0.3 mm 0.0118 in | ||
| operating temperature range: | -40 to 120 ºC | ||
| maximum rpm: | 8000 RPM | ||
| dynamic load capacity: | 11500 N | ||
| series: | 68 | ||
| static load capacity: | 10600 N | ||
| manufacturer product page: | Click here |
