Product Description
 |  | |

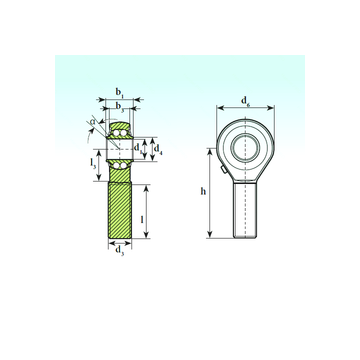

| Name | TSM 22 BB | TSM 22 BB-O |
| Brand | ISB | ISB |
| Bore Diameter (mm) | 22(mm) | 22(mm) |
| d1 | 22 mm 0.8661 in | 22 mm 0.8661 in |
| d7 | 38 mm 1.4961 in | |
| I | 37 mm 1.4567 in | 51 mm 2.0079 in |
| b1 | 28 mm 1.1024 in | 28 mm 1.1024 in |
| d2 | 30 mm 1.1811 in | |
| d4 | 26 mm 1.0236 in | 26 mm 1.0236 in |
| d6 | 54 mm 2.126 in | 54 mm 2.126 in |
| h | 84 mm 3.3071 in | 84 mm 3.3071 in |
| l1 min. | 12 mm 0.4724 in | |
| l3 min. | 26 mm 1.0236 in | 26 mm 1.0236 in |
| SW | 32 mm 1.2598 in | |
| B3 | 20 mm 0.7874 in | 20 mm 0.7874 in |
| Thread (G) | M22x1,5 | M22x1,5 |
| Angle | 8 ° | 8 ° |
| Weight | 0,48 Kg | 0,45 Kg |
| Basic dynamic load rating (C) | 9,35 kN | 9,3 kN |
| Basic static load rating (C0) | 3,95 kN | 3,98 kN |
| Limiting speed | 750 r/min | 725 r/min |
| Calculation factor (Y) | 2,35 | 2,35 |
