Product Description
 |  |  | |
| Name | 23980 | 23980 | 23980 KCW33 |
| Brand | NTN | ISB | CX |
| rs min | 4 mm 0.1575 in | ||
| Number of lubrication holes | 8 | ||
| b | 16 mm 0.6299 in | ||
| k | 10 mm 0.3937 in | ||
| e | 0.18 | ||
| Y1 | 3.71 | ||
| Y2 | 5.53 | ||
| Y0 | 3.63 | ||
| Radial clearance class | CN | ||
| Dynamic load, C | 1,580 kN | ||
| Static load, C0 | 3,650 kN | ||
| Fatigue limit load, Cu | 296 kN | ||
| Nref | 750 rpm | ||
| Nlim | 1,000 rpm | ||
| Min operating temperature, Tmin | -40 °C | ||
| Max operating temperature, Tmax | 120 °C | ||
| Characteristic cage frequency, FTF | 0.47 Hz | ||
| Characteristic rolling element frequency, BSF | 15.18 Hz | ||
| Characteristic outer ring frequency, BPF0 | 18.7 Hz | ||
| Characteristic inner ring frequency, BPFI | 21.3 Hz | ||
| da min | 414.6 mm 16.3228 in | ||
| Da max | 525.4 mm 20.6851 in | ||
| ra max | 3 mm 0.1181 in | ||
| Category | Bearings | ||
| BDI Inventory | 0.0 | ||
| Manufacturer Name | NTN | ||
| Minimum Buy Quantity | N/A | ||
| Weight / Kilogram | 73 | ||
| Product Group - BDI | B04311 | ||
| Size (mm) | 400x540x106(mm) | 400x540x106(mm) | 400x540x106(mm) |
| Bore Diameter (mm) | 400(mm) | 400(mm) | 400(mm) |
| Outer Diameter (mm) | 540(mm) | 540(mm) | 540(mm) |
| Width (mm) | 106(mm) | 106(mm) | 106(mm) |

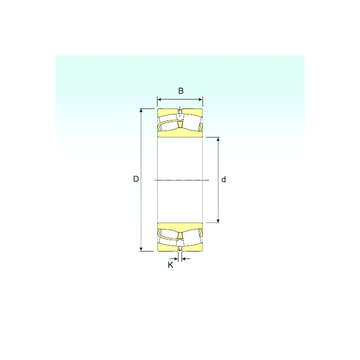

| d | 400 mm 15.748 in | 400 mm 15.748 in | 400 mm 15.748 in |
| D | 540 mm 21.2599 in | 540 mm 21.2599 in | 540 mm 21.2599 in |
| B | 106 mm 4.1732 in | 106 mm 4.1732 in | 106 mm 4.1732 in |
| C | 106 mm 4.1732 in | 106 mm 4.1732 in | 106 mm 4.1732 in |
| r min. | 4 mm 0.1575 in | ||
| da min. | 418 mm 16.4567 in | ||
| Da max. | 522 mm 20.5512 in | ||
| ra max. | 3 mm 0.1181 in | ||
| Weight | 73 Kg | 71 Kg | 71 Kg |
| Basic dynamic load rating (C) | 1 580 kN | 1960 kN | 1730 kN |
| Basic static load rating (C0) | 3 650 kN | 3822 kN | 3900 kN |
| (Grease) Lubrication Speed | 550 r/min | 918 r/min | 750 r/min |
| (Oil) Lubrication Speed | 720 r/min | ||
| Calculation factor (e) | 0,18 | ||
| Calculation factor (Y0) | 3,63 | ||
| Calculation factor (Y1) | 3,71 |
