Home>Products>Deep Groove Ball Bearings>623-2Z FAG Deep Groove Ball Bearings
English
-
Wamei Industrial Manufacture Co.,Limited.2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |
| Name | 623-2Z | 623-2Z | 623-2Z |
| Brand | SKF | NKE | FAG |
| da - min. | 4.2 mm 0.1654 in | ||
| da - max. | 5.1 mm 0.2008 in | ||
| Da - max. | 8.8 mm 0.3465 in | ||
| ra - max. | 0.1 mm 0.0039 in | ||
| Basic dynamic load rating - C | 0.54 kN | ||
| Size (mm) | 10x3x4(mm) | 3x10x4(mm) | 3x10x4(mm) |
| Basic static load rating - C0 | 0.18 kN | ||
| Fatigue load limit - Pu | 0.007 kN | ||
| Reference speed | 130000 r/min | ||
| Limiting speed | 60000 r/min | ||
| Calculation factor - kr | 0.025 | ||
| Calculation factor - f0 | 7.5 | ||
| Bore Diameter (mm) | 10(mm) | 3(mm) | 3(mm) |
| Outer Diameter (mm) | 3(mm) | 10(mm) | 10(mm) |
| Width (mm) | 4(mm) | 4(mm) | 4(mm) |

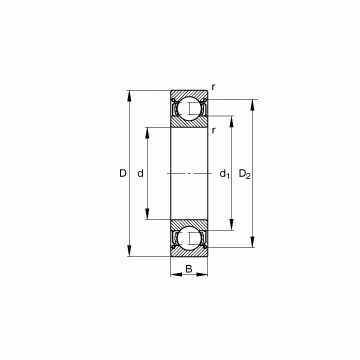

| d | 3 mm 0.1181 in | 3 mm 0.1181 in | 3 mm 0.1181 in |
| D | 10 mm 0.3937 in | 10 mm 0.3937 in | 10 mm 0.3937 in |
| B | 4 mm 0.1575 in | 4 mm 0.1575 in | 4 mm 0.1575 in |
| d1 | 5.2 mm 0.2047 in | 5 mm 0.1969 in | |
| D2 | 8.2 mm 0.3228 in | 8,2 mm 0.3228 in | |
| r1,2 - min. | 0.15 mm 0.0059 in | ||
| d1 ≈ | 5.2 mm 0.2047 in | ||
| Category | Single Row Ball Bearings | ||
| BDI Inventory | 0.0 | ||
| Manufacturer Name | SKF | ||
| Minimum Buy Quantity | N/A | ||
| Weight / Kilogram | 0.004 | ||
| EAN | 7316577094933 | ||
| Product Group - BDI | B00308 | ||
| Enclosure | 2 Metal Shields | ||
| Precision Class | ABEC 1 | ISO P0 | ||
| Maximum Capacity / Filling Slot | No | ||
| Rolling Element | Ball Bearing | ||
| Snap Ring | No | ||
| Internal Special Features | No | ||
| Cage Material | Steel | ||
| Internal Clearance | C0-Medium | ||
| Inch - Metric | Metric | ||
| Long Description | 3MM Bore; 10MM Outside Diameter; 4MM Outer Race Diameter; 2 Metal Shields; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features | ||
| Category - BDI | Single Row Ball Bearing | ||
| UNSPSC | 31171504 | ||
| Harmonized Tariff Code | 8482.10.50.68 | ||
| Noun | Bearing | ||
| Keyword String | Ball | ||
| Manufacturer URL | http://www.skf.com | ||
| Manufacturer Item Number | 623-2Z | ||
| Weight / LBS | 0.01 | ||
| Outer Race Width | 0.157 Inch | 4 Millimeter | ||
| Bore | 0.118 Inch | 3 Millimeter | ||
| Outside Diameter | 0.394 Inch | 10 Millimeter | ||
| bore diameter: | 3 mm 0.1181 in | ||
| static load capacity: | 0.18 kN | ||
| outside diameter: | 10 mm 0.3937 in | ||
| precision rating: | Not Rated | ||
| overall width: | 4 mm 0.1575 in | ||
| finish/coating: | Uncoated | ||
| bore type: | Round | ||
| cage material: | Steel | ||
| closure type: | Double Shielded | ||
| outer ring width: | 4 mm 0.1575 in | ||
| row type & fill slot: | Single Row Non-Fill Slot | ||
| fillet radius: | 0.1 mm 0.0039 in | ||
| internal clearance: | C0 | ||
| maximum rpm: | 60000 RPM | ||
| dynamic load capacity: | 0.54 kN | ||
| series: | 62 | ||
| D2 ≈ | 8.2 mm 0.3228 in | ||
| r1,2 min. | 0.15 mm 0.0059 in | ||
| da min. | 4.2 mm 0.1654 in | ||
| da max. | 5.1 mm 0.2008 in | ||
| Da max. | 8.8 mm 0.3465 in | ||
| ra max. | 0.1 mm 0.0039 in | ||
| Basic dynamic load rating C | 0.54 kN | ||
| Basic static load rating C0 | 0.18 kN | ||
| Fatigue load limit Pu | 0.007 kN | ||
| Calculation factor kr | 0.025 | ||
| Calculation factor f0 | 7.5 | ||
| Mass bearing | 0.0015 kg |
Wamei Industrial Manufacture Co.,Limited is your best, safest & quickest partner to buy Hydraulic components. You just send us the part number or you tell us the brand and sepcification you are looking for, we'll make the quotation for you asap.
