Product Description
 |  |  | |
| Name | 1215 | 1215 | 1215 |
| Brand | SKF | AST | CONSOLIDATED BEARING |
| bore diameter: | 75 mm 2.9528 in | ||
| precision rating: | Not Rated | ||
| outside diameter: | 130 mm 5.1181 in | ||
| maximum rpm: | 6700 RPM | ||
| overall width: | 25 mm 0.9843 in | ||
| cage material: | Steel | ||
| bore type: | Straight | ||
| finish/coating: | Uncoated | ||
| closure type: | Open | ||
| outer ring width: | 25 mm 0.9843 in | ||
| internal clearance: | C0 | ||
| fillet radius: | 1.5 mm 0.0591 in | ||
| dynamic load capacity: | 39 kN | ||
| series: | 1200 | ||
| static load capacity: | 15.6 kN | ||
| da min. | 84 mm 3.3071 in | ||
| d1 ≈ | 93.05 mm 3.6634 in | ||
| D1 ≈ | 114.2 mm 4.4961 in | ||
| r1,2 min. | 1.5 mm 0.0591 in | ||
| da min. | 84 mm 3.3071 in | ||
| Da max. | 121 mm 4.7638 in | ||
| ra max. | 1.5 mm 0.0591 in | ||
| Basic dynamic load rating C | 39 kN | ||
| Basic static load rating C0 | 15.6 kN | ||
| Fatigue load limit Pu | 0.8 kN | ||
| Permissible angular misalignment α | 2.5 ° | ||
| Calculation factor kr | 0.04 | ||
| Calculation factor e | 0.17 | ||
| Calculation factor Y0 | 4 | ||
| Calculation factor Y1 | 3.7 | ||
| Calculation factor Y2 | 5.7 | ||
| Mass bearing | 1.35 kg | ||

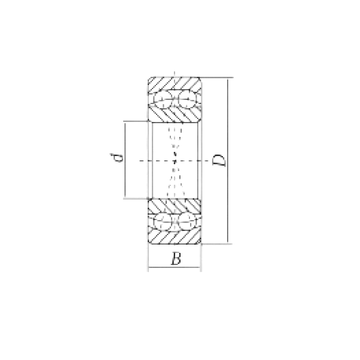

| Size (mm) | 75x130x25(mm) | 75x130x25(mm) | |
| Bore Diameter (mm) | 75(mm) | 75(mm) | |
| Outer Diameter (mm) | 130(mm) | 130(mm) | |
| Width (mm) | 25(mm) | 25(mm) | |

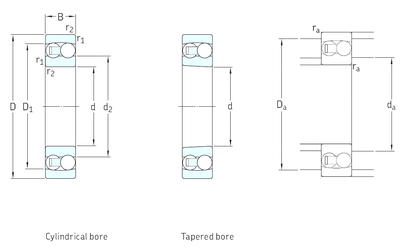

| d | 75 mm 2.9528 in | ||
| D | 130 mm 5.1181 in | ||
| B | 25 mm 0.9843 in | ||
| C | 25 mm 0.9843 in | ||
| d2 | 93 mm 3.6614 in | ||
| r1 min. | 1,5 mm 0.0591 in | ||
| r2 min. | 1,5 mm 0.0591 in | ||
| D1 | 116 mm 4.5669 in | ||
| Da max. | 121 mm 4.7638 in | ||
| ra max. | 1,5 mm 0.0591 in | ||
| Weight | 1,35 Kg | ||
| Basic dynamic load rating (C) | 39 kN | ||
| Basic static load rating (C0) | 15,6 kN | ||
| Fatigue load limit (Pu) | 0,8 | ||
| Reference speed | 10000 r/min | ||
| Limiting speed | 6700 r/min | ||
| Calculation factor (e) | 0,17 | ||
| Calculation factor (kr) | 0,04 | ||
| Calculation factor (Y0) | 4 | ||
| Calculation factor (Y1) | 3,7 | ||
| Category | Self Aligning Ball Bearings | Self Aligning Ball Bearings | |
| BDI Inventory | 0.0 | 0.0 | |
| Manufacturer Name | SKF | CONSOLIDATED BEARING | |
| Minimum Buy Quantity | N/A | N/A | |
| Weight / Kilogram | 1.351 | 1.36 | |
| EAN | 7316576605024 | 0644075108997 | |
| Product Group - BDI | B00152 | B00152 | |
| Mounting Method | Shaft | Shaft | |
| Enclosure | Open | Open | |
| Rolling Element | Ball Bearing | Ball Bearing | |
| Cage Material | Steel | Steel | |
| Precision Class | ABEC 1 | ISO P0 | ABEC 1 | ISO P0 | |
| Internal Clearance | C0-Medium | C0-Medium | |
| Number of Rows of Balls | Double Row | Double Row | |
| Other Features | Allowable Misalignment 3 Deg | Allowable Misalignment 4 Deg | |
| Long Description | 75MM Bore; Shaft Mount; 130MM Outside Diameter; 25MM Inner Race Width; 25MM Outer Race Width; Open; Steel Cage; Double Row of Balls; ABEC 1 | ISO P0; C0-Medium | 75MM Bore; Shaft Mount; 130MM Outside Diameter; 25MM Inner Race Width; 25MM Outer Race Width; Open; Steel Cage; Double Row of Balls; ABEC 1 | ISO P0; C0-Medium | |
| Inch - Metric | Metric | Metric | |
| Category - BDI | Self Aligning Ball Bearings | Self Aligning Ball Bearings | |
| UNSPSC | 31171532 | 31171532 | |
| Harmonized Tariff Code | 8482.10.50.68 | 8482.10.50.68 | |
| Noun | Bearing | Bearing | |
| Keyword String | Self Aligning | Self Aligning | |
| Manufacturer URL | http://www.skf.com | http://www.consbrgs.com | |
| Manufacturer Item Number | 1215 | 1215 | |
| Weight / LBS | 2.976 | 2.998 | |
| Inner Race Width | 0.984 Inch | 25 Millimeter | 0.984 Inch | 25 Millimeter | |
| Outer Race Width | 0.984 Inch | 25 Millimeter | 0.984 Inch | 25 Millimeter | |
| Outside Diameter | 5.118 Inch | 130 Millimeter | 5.118 Inch | 130 Millimeter | |
| Bore | 2.953 Inch | 75 Millimeter | 2.953 Inch | 75 Millimeter |
