Product Description
Name | 2306 | 2306 | 2306 |
Brand | NSK | CONSOLIDATED BEARING | CX |
CAD | http://service.web2cad.co.jp/pcom/?Maker=NSK_RB&info=nsk_rb/roller_bearings/self_aliging_bb/cylindrical_bore_asmtab.prj&varset={STAN=-},{ORDER=2306},{SD=30},{D=72},{B=27},{R=1.1},{CR1=32000},{COR1=8750},{CR2=3250},{COR2=895},{LG=8000},{LO=10000},{DA1=36.5},{DA2=65.5},{RA=1.0},{E=0.44},{Y2=2.2},{Y3=1.40},{Y0=1.50},{MASS=0.480} | ||
hidTable | ecat_NSSAB | ||
Oil rpm | 10000 | ||
SRE | 0 | ||
Y0 | 1.5 | ||
mass | 0.48 | ||
ra | 1 | ||
GRS rpm | 8000 | ||
SRIX | 0.05 | ||
groove inner | 38.268 | ||
D_a | 65.5 | ||
SRIN | 0 | ||
C0 | 8.75 | ||
groove outer | 64.214 | ||
SREN | 0 | ||
X0 | 1 | ||
Prod_Type3 | SABB_SA_CB | ||
X1 | 1 | ||
da | 36.5 | ||
X2 | 0.65 | ||
e | 0.44 | ||
yobi | 2306 | ||
r | 1.1 | ||
KBRG | 1354 | ||
CAng | 16.322 | ||
cyl dia | 11.906 | ||
calcUrl | /BearingGuide/html/calculation.jsp | ||
C | 27 mm 1.063 in | 27 mm 1.063 in | |
r min. | 1,1 mm 0.0433 in | ||
da min. | 36,5 mm 1.437 in | ||
Da max. | 65,5 mm 2.5787 in | ||
ra max. | 1 mm 0.0394 in | ||
Weight | 0,48 Kg | 0,5 Kg | |
Basic dynamic load rating (C) | 32 kN | 31,2 kN | |
Basic static load rating (C0) | 8,75 kN | 8,8 kN | |
(Grease) Lubrication Speed | 8 000 r/min | 8500 r/min | |
(Oil) Lubrication Speed | 10 000 r/min | ||
Calculation factor (e) | 0,44 | ||
Calculation factor (Y0) | 1,5 | ||
Calculation factor (Y2) | 2,2 | ||
SRI | 6.25 | ||
Y3 | 1.4 | ||
hidYobi | 2306 | ||
LangID | 1 | ||
PCD | 50.2 | ||
D_ | 72 | ||
Y2 | 2.2 | ||
SREX | 0 | ||
cyl count | 11 | ||
B_ | 27 | ||

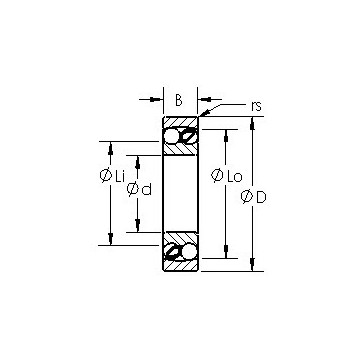

Size (mm) | 30x72x27(mm) | 30x72x27(mm) | |
Bore Diameter (mm) | 30(mm) | 30(mm) | |
Outer Diameter (mm) | 72(mm) | 72(mm) | |
Width (mm) | 27(mm) | 27(mm) | |
d | 30 mm 1.1811 in | 30 mm 1.1811 in | |
D | 72 mm 2.8346 in | 72 mm 2.8346 in | |
B | 27 mm 1.063 in | 27 mm 1.063 in |
